Two-dimensional rectangular cantilever
Ground structure (lattice) topology optimization

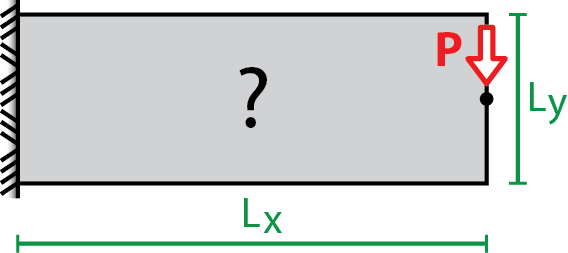

Rectangular domain clamped at the left side and loaded at the right by a vertical force applied at the middle--central point.
"GRAND — Ground structure based topology optimization for arbitrary 2D domains using MATLAB." T. Zegard and G. H. Paulino. Journal of Structural and Multidisciplinary Optimization 50(5), 2014.
