Torsion cone
3D ground structure (lattice) topology optimization

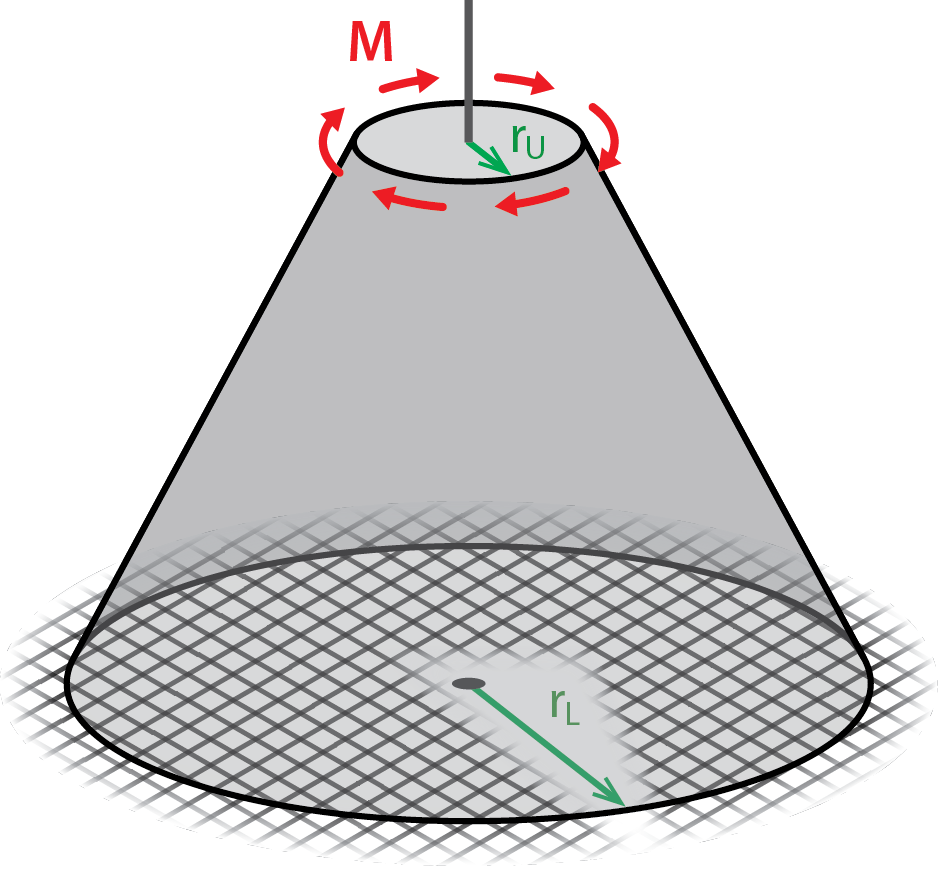

Domain is a capped cone loaded by moments at the opposite caps.
"GRAND3 — Ground structure based topology optimization for arbitrary 3D domains using MATLAB." T. Zegard and G. H. Paulino. Journal of Structural and Multidisciplinary Optimization 52(6), 2015.
