Shear box
Density-based topology optimization (SIMP)

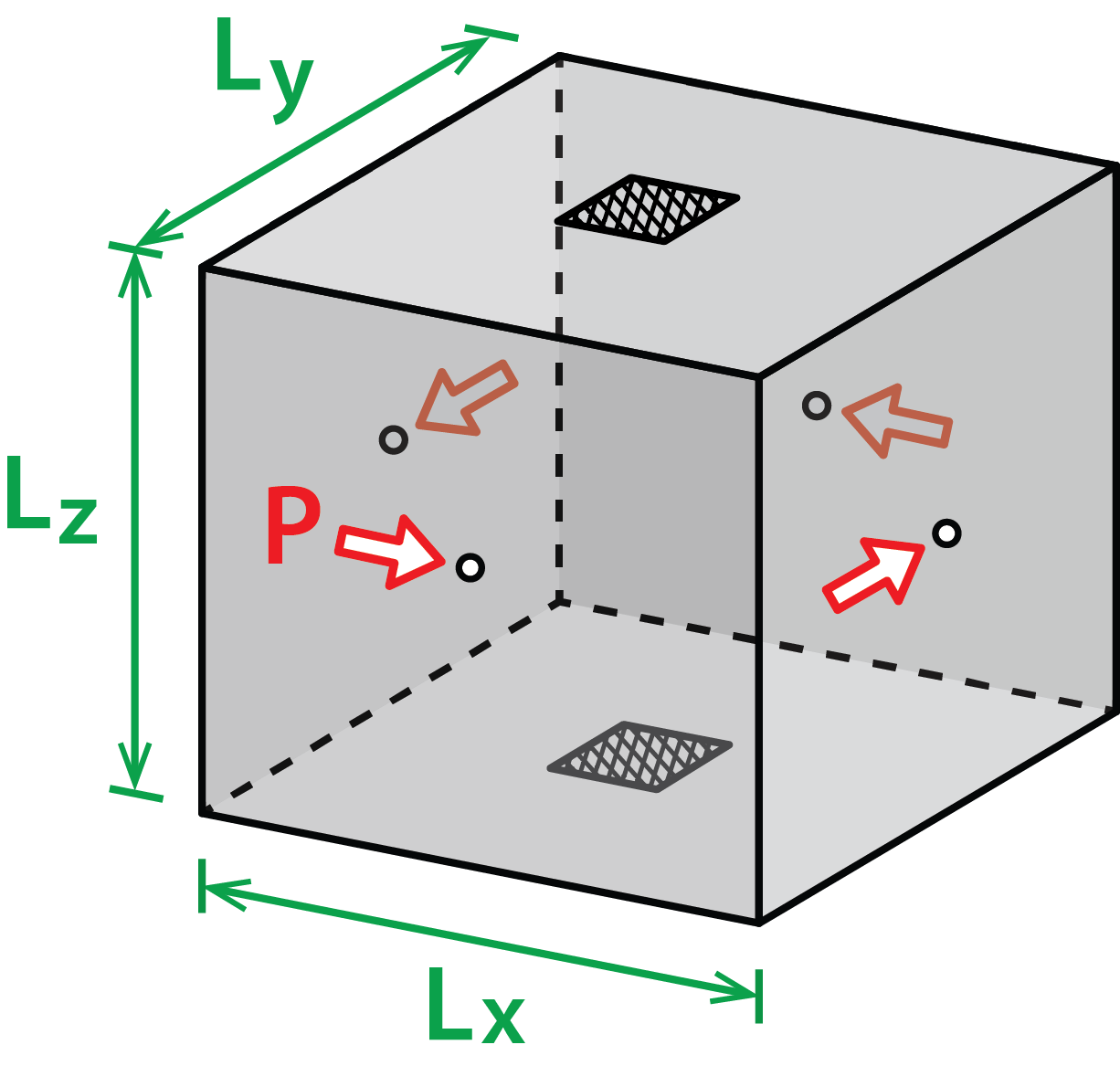

Cube domain suported along the poles and loaded at the center of the remaining four facets to induce a rotation-like shear.
"Bridging topology optimization and additive manufacturing." T. Zegard and G. H. Paulino. Journal of Structural and Multidisciplinary Optimization 53(1), 2016.
